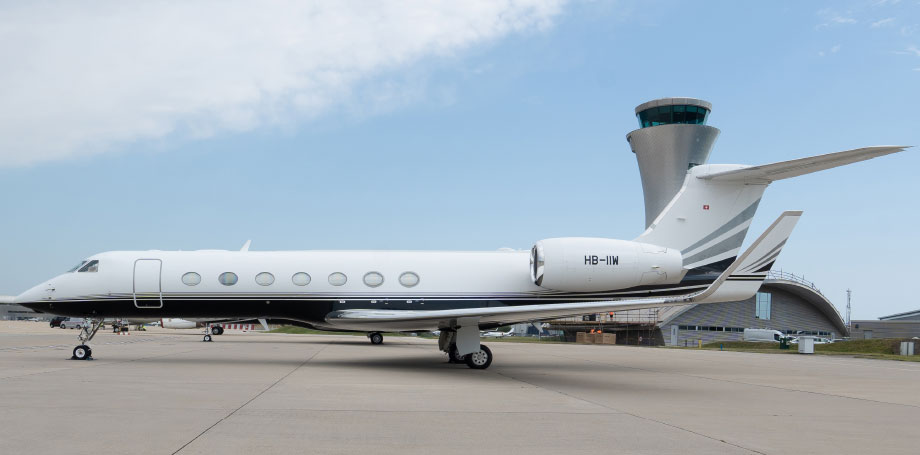

2013 GULFSTREAM G550

HIGHLIGHTS

New Paint 2021
Engines on Rolls Royce Corporate Care
APU on Honeywell MSP
Forward Galley, Forward Crew Rest Area
16 Passenger Interior (Hallmark Configuration)
CPDLC, FANS-1/A, WAAS/LPV
Broadband Multi-Link (BBML) run on Ku-Band
High Speed Data System (HD-710) – with automatic switching between BBML and HD-710
Honeywell AIS 2000 Satellite Television – Multi-Region
Airborne Information System
Honeywell MCS-7000+ Satcom
Aircell Axxess II Iridium Satcom
High Definition Audio Video Distribution System (AVDS)
Airshow 4000 V2
Securaplane™ Camera System & Pre-Flite Aircraft Security System
Synthetic Vision System
Planeview™ Enhanced Navigation Package
Horizontal Stabilizer Inspection Completed

AIRFRAME

Certificate of Airworthiness: February 2013

Entry Into Service: June 2013

Total Time Since New: June 2013

Total Landings Since New: 1,363

ENGINES

Manufacturer: February 2013

Model: June 2013

	ENGINE 1 (LEFT)	ENGINE 2 (RIGHT)
Serial Number :	Total Time Since New :	Total Cycles Since New :
	3,591 Hours	1,363
	3,591 Hours	1,363

Program Coverage: Enrolled on Rolls Royce Corporate Care

APU

Manufacturer: Honeywell

Model: RE-220

Total Time Since New: 3,202 Hours

Program Coverage: Enrolled on Honeywell MSP

AVIONICS

Four (4) Honeywell DU-1310 Flat Panel Display Units
Two (2) Honeywell DC-884 Display Controllers
One (1) Honeywell/Kollsman Visual Guidance System (VGS)
Three (3) Honeywell MAU-913 Modular Avionics Units
One (1) Honeywell GP-500 Flight Guidance Panel
Three (3) Honeywell MC-850 Multi-Function Control Display Units
Three (3) Honeywell AZ-200 Air Data Modules
One (1) Honeywell WU-880 Weather Radar Receiver/Transmitter Antenna
Two (2) Honeywell WC-884 Weather Radar Controllers
Three (3) Honeywell IR-500 Laser Ref V Micro Inertial Reference Units
Two (2) Honeywell MRC-855A Modular Radio Cabinets
Three (3) Honeywell AV-900 Audio Panels
One (1) Honeywell MT-860 Third Navigation/Communication Cabinet
Two (2) Honeywell RT-300 Radio Altimeters
One (1) Universal Avionics Flight Data Recorder (88 Parameters)
Two (2) Davtron Digital Clocks
One (1) L3 EBDI-4000 Radio Magnetic Indicator (Standby RMI)
One (1) L3 Magnetometer
One (1) L3 GH-3100 Standby Attitude/Airspeed/Altitude Indicator
One (1) L3 RT-951 Traffic Alert Collision Avoidance System (TCAS 2000)
Two (2) Mason Cursor Control Devices
One (1) Miltope Printer (Cockpit)
One (1) Honeywell MCS 7000+ SATCOM
One (1) Chelton SATCOM Antenna
One (1) Aircell Call Alerter Switch (ACA)
One (1) Aircell Axxess Handset Interface (AHI-2)
One (1) Aircell Cabin Telecommunication Router
One (1) Aircell Transceiver ST-4200
One (1) Sensor Systems Dual Element Antenna
One (1) Aircell Iridium-Based Wired Handset (Cockpit)

AIRCRAFT SERVICE CHANGES (ASCS)

ASC / Feature	Description
ASC 002D	Digital Flight Data Recorder System Upgrade to 88 Parameters
ASC 014A	Category II Annunciation – Activation
ASC 035A	EASA / JAA Certification Basic Requirements
ASC 061B	Synthetic Vision – Primary Flight Display Installation
ASC 063B	Wing Fuel Transfer System, Mid-Wing Ejector Modification
ASC 065A	Runway Awareness Advisory System Installation
ASC 071	Micro Quick Access Recorder Installation
ASC 084B	Enhanced Navigation CPDLC FANS-1/A WAAS/LPV Approaches Circling Approaches Temp Compensated VNAV SRN/LRN Transition Automatic Preview LRN/SRN Peaks Display Electronic Terminal Charts Certified Paperless RNP 0.1 / RNP SAAR (Authorization Required)
ASC 091A	Enhanced Baggage Door Seal System Installation
ASC 912	Planeview™ Master Operating System Software Update
ASC 136B	Wing To Body Fairings
ASC 137B	Gasket Corrosion Protection
ASC 138A	Seat Tracks

ENTERTAINMENT & ADDITIONAL FEATURES

Broadband Multi-Link System With Ku-Band Modem (Yonder Viasat)
Honeywell High-Speed Data System HD-710 (with automatic switching between BBML and HD-710)
Two (2) RJ-45 BBML Advanced Cabin Server Wired Connections, One (1) in the Forward Crew Communications Department and One (1) at the Conference Group
Satellite TV Honeywell AIS-2000 Multi-Region Airborne Information System
Honeywell MCS-7000+ SATCOM with One (1) Analog Handset with Connector at Conference Grouping
Aircell Axxess II Iridium Satellite Communication System Providing Two (2) Channels with 4 iPhone Wireless Handsets with Charging Units and One Cockpit Wired Handset
No. 2 60 Hz Converter
One (1) TIA 1603 Coffeemaker
One (1) Aerolux Espresso Machine
One (1) Sharp R-21LTF Microwave Oven
One (1) Enflite Hi-Temp Conventional Oven
One (1) Epson Stylus NX430 Multi-Function Wireless Printer in Credenza
Gulfstream High Definition Digital Audio/Video Distribution System (AVDS)
Airshow 4000 Version 2 Passenger Flight Information System
Securaplane External Color Video Camera System (3 Cameras)
Galley Touch-Screen Monitor and Secondary Galley Switch Panel
Two (2) Galley Mounted Blu-Ray Players
One (1) Dual iPod Jack Panel Located in the Galley
HDMI Port Located at NO. 2 Right Hand Seat
One (1) 19” HD Widescreen Monitor at Credenza
Two (2) 24” HD Widescreen LCD Monitors on the Forward Side of the Aft Cabin Bulkhead
One (1) 24” HD Widescreen LCD Monitor on the L/H Forward Cabin Bulkhead
One (1) 19” HD Widescreen LCD Monitor on the R/H Forward Cabin Bulkhead
Four (4) 28” Single Seats with 9” Compatible LCD Monitors in Inboard Armrests
One (1) 9” HD Compatible Plug-In LCD Monitor for Forward Communications Area
Two (2) 81” Divans Berthing to 7 inches in Aft Cabin
Electrically Operated Pocket Door between Forward and Aft Cabin
One (1) Jaclo Bidet Sprayer with In-Line Water Heater in Lavatory Enclosure
One (1) High Capacity Maintenance Storage Box with (40) lbs. Capacity

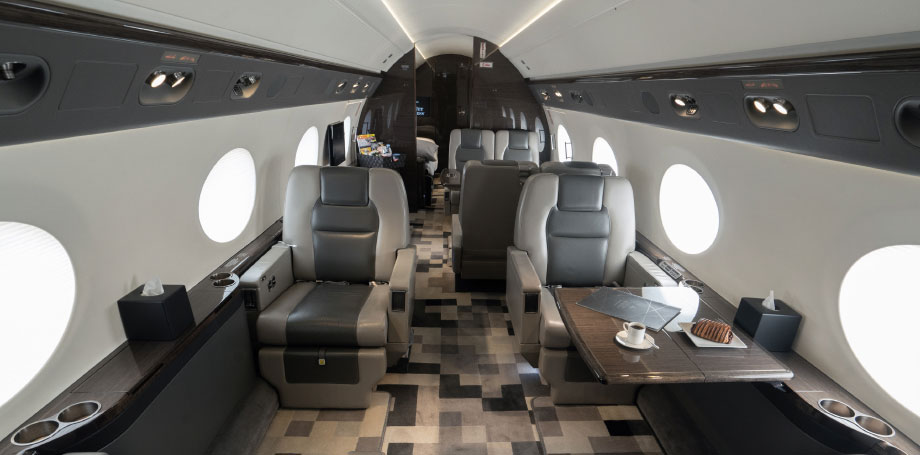

INTERIOR

Configuration: 16 Passenger ‘Hallmark’ Configuration with Forward Galley and Forward Crew Rest Area

Entrance Area: Full Service Galley with Tia Coffee Maker, Espresso Machine, Microwave and Conventional Ovens, Touch Screen Monitor, Secondary Galley Switch Panel, 2 x DVD Players and Dual iPod Jack Panel Crew Rest Area Crew Lavatory

Forward Cabin: Club Four Arrangement

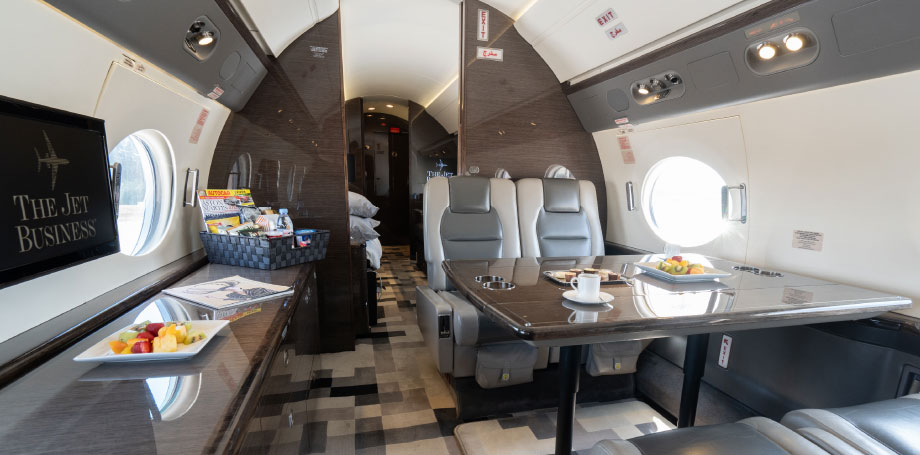

Mid Cabin: Four-Place Conference / Dining Area with Credenza Opposite

Aft Cabin: 2 x 81” Berthable Divans
